The Complete Guide to FDM vs Resin 3D Printing: Choosing the Right Technology for Your Prototype

You've got a part that needs printing. Maybe it's a housing for an electronics project, a custom bracket, or a detailed scale model you've spent weeks designing. You jump onto a 3D printing service and immediately you're asked: FDM or resin?

If you're not sure what that question means — or you know the basics but can't figure out which one suits your job — this guide is for you. No fluff. Just a practical framework for making the right call.

What Are FDM and Resin 3D Printing, Really?

Before comparing them, it helps to understand what's actually happening inside each machine.

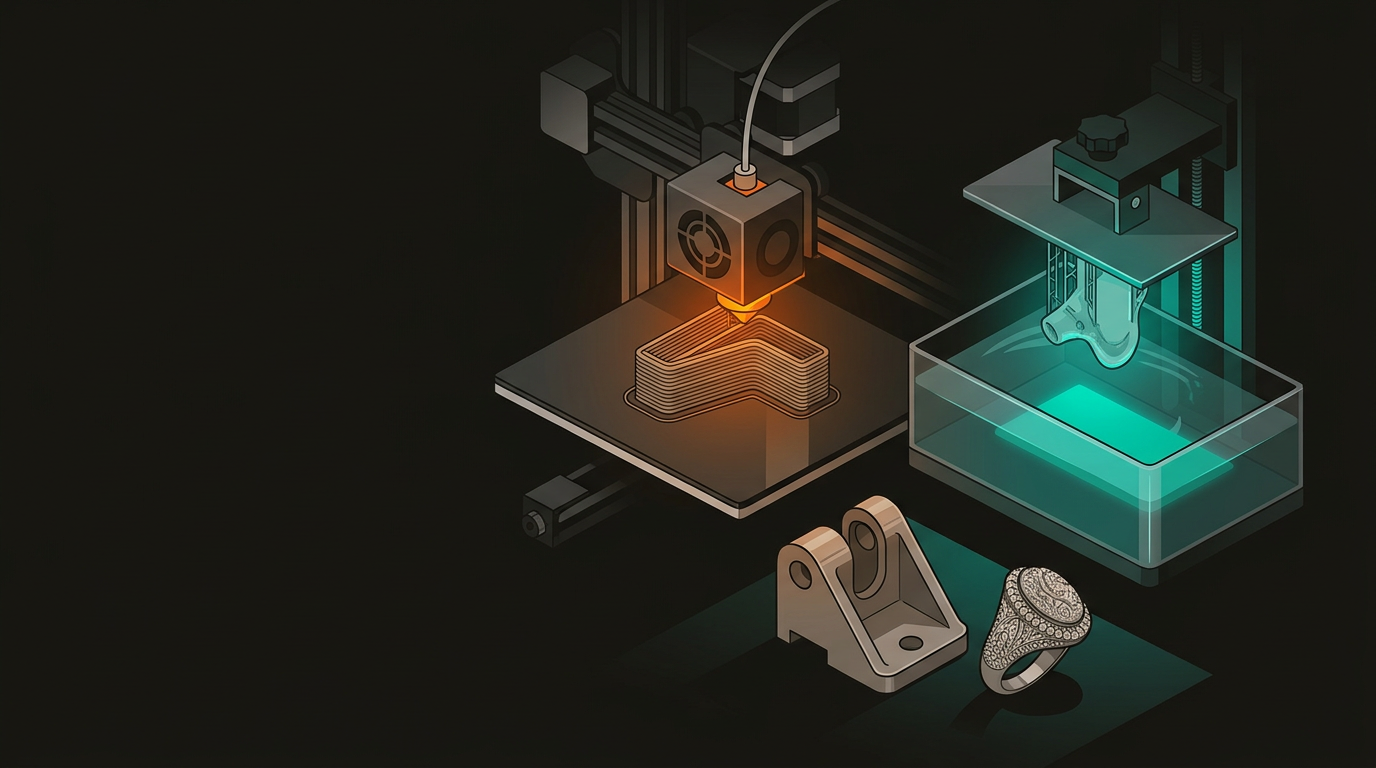

FDM (Fused Deposition Modelling) melts a thermoplastic filament and deposits it layer by layer onto a build plate. Think of it as a very precise, computer-controlled hot glue gun. Common materials include PLA, PETG, ABS, ASA, and TPU — each suited to different jobs.

Resin printing (SLA or MSLA, depending on the light source) works completely differently. A UV light source — either a laser or an LCD screen — cures liquid photopolymer resin one layer at a time. Instead of building upward with melted plastic, you're pulling a part out of a vat of liquid as each layer solidifies beneath it.

Two very different processes. Two very different results.

Surface Finish and Detail: Where Resin Wins Outright

If you need fine detail, resin wins — and it's not a close contest.

FDM parts are built with visible layer lines. At standard settings (0.2mm layer height), those lines are obvious to the eye and obvious to the touch. You can dial it back to 0.1mm or even 0.05mm, but print time blows out fast and you'll still see lines under close inspection.

Resin printers typically run 0.025–0.05mm layer heights as standard. The curing process produces a much smoother transition between layers, so surface finish is dramatically finer. Text, threads, small interlocking features, organic curves — all come out crisp and clean.

When this matters:

  • Jewellery masters or casting patterns
  • Miniatures and figurines
  • Dental or medical models
  • Consumer product prototypes where appearance is being evaluated
  • Any part under 100mm where fine detail is critical

When it doesn't:

  • A structural bracket that lives inside a machine and never sees daylight
  • A large enclosure that's getting sanded or painted anyway
  • Functional clips and snap-fits where a bit of surface texture actually helps

Strength, Durability, and Material Properties: FDM's Home Turf

This is where FDM pulls ahead — significantly, for most functional applications.

Standard photopolymer resins are brittle. They look beautiful on a desk. Drop them and they crack. They're also sensitive to UV exposure over time, which makes outdoor or long-term applications tricky without specialist materials.

FDM thermoplastics offer a proper range of real-world mechanical properties:

  • PLA — Easy to print, decent strength, biodegradable, but soft in the heat (~60°C)
  • PETG — Strength, flexibility, and chemical resistance in one package; a genuine workhorse
  • ABS/ASA — Higher heat resistance, impact-tough; ASA adds UV stability for outdoor use
  • TPU — Flexible and rubber-like, ideal for gaskets, grips, and protective covers
  • Nylon (PA12) — Excellent fatigue resistance and toughness for parts under real load

Anything that needs to be dropped, flexed, torqued, left in the sun, or exposed to chemicals — FDM with the right material will almost always outperform standard resin.

That said, engineering resins are improving fast. If you need fine detail and functional strength in a small part, some modern resins are genuinely good — just expect to pay more and plan for careful post-processing.

Cost and Speed: The Practical Reality

This is where assumptions tend to fall apart.

FDM is usually cheaper for:

  • Large parts — build volumes are typically much bigger
  • Simple geometry that doesn't need heavy support structures
  • Functional prototypes where surface finish isn't the point
  • Running multiple iterations without blowing the budget

Resin costs more because:

  • The material itself is pricier than filament
  • Post-processing needs IPA or dedicated wash solution, UV curing equipment, and time
  • Failed prints waste expensive liquid resin
  • Smaller build volumes mean large parts often need splitting and bonding

Speed is more nuanced than most people expect. A small, detailed resin print can be faster than an equivalent FDM part, because the entire layer cures at once rather than being traced line by line. But a large FDM part on a big-format printer can run overnight in a way resin simply can't match at scale.

At Plastixel — GeoSaffer's dedicated 3D printing brand — we run both FDM and resin setups for exactly this reason. The right process genuinely depends on the job. We're scaling toward a full print farm for production volume, which means we can give you honest advice about what will deliver the best result at the lowest cost for your specific project.

Real-World NZ Project Examples

Theory is useful. Real jobs are better. Here are the kinds of projects we see regularly in Auckland:

Scenario 1: Electronics enclosure for a local IoT startup
A small NZ tech company needed a prototype housing for a sensor device. It had to fit PCBs accurately, include snap-fit tabs, and look presentable for investor demos. Result: FDM in PETG. Functional tabs, accurate dimensions, light sand and spray paint for the demo. Resin would have looked better straight off the printer — but those snap-fits would have been fragile.

Scenario 2: Jewellery casting master for an Auckland designer
A jewellery designer needed a ring master for silver casting. Every surface curve and engraved detail counted. Result: Resin, printed at 0.025mm layer height in castable resin, burned out cleanly in the investment casting process. FDM wasn't even in the conversation for this one.

Scenario 3: Custom automotive bracket for a Kiwi workshop
A fabrication workshop needed a mounting bracket to hold a controller unit in an engine bay — heat, vibration, occasional moisture. Result: FDM in ASA. UV and heat stable, strong enough for the mechanical load, and cheap enough to print three iterations to dial in the fit.

Quick Decision Guide

Not sure where your project sits? Work through these:

Choose resin if:

  • ✅ You need fine surface detail or smooth aesthetics
  • ✅ The part is small (typically under 150mm in any dimension)
  • ✅ It's a display model, casting master, or dental/medical use
  • ✅ Layer lines are a dealbreaker and post-processing time isn't

Choose FDM if:

  • ✅ The part needs real mechanical strength or flexibility
  • ✅ It's large, or needs to be produced in volume without breaking the budget
  • ✅ Material properties matter — heat resistance, UV stability, chemical resistance
  • ✅ You're iterating quickly and cost per part is a real consideration
  • ✅ It'll be painted, sanded, or finished anyway

Consider both if:

  • You need a fine-detail outer shell with a structural internal component — hybrid assemblies are more common than people realise

Getting It Right the First Time

Pick the wrong process and you're losing time, money, and goodwill — especially on a tight prototype timeline. The good news is that once you understand what each technology is actually built for, the decision usually becomes obvious.

If you're based in Auckland or anywhere in New Zealand and want to talk through your project before committing, the team at GeoSaffer is happy to help. We do this every day — across FDM, resin, CNC, laser cutting, and more. We'd rather spend five minutes steering you toward the right process upfront than reprint a job that was never suited to the technology in the first place.
